Hard to test cases in Pester

Published May 24, 2018 by FoxDeploy

Recently at work I have finally seen the light and begun adding Pester tests to my modules.  Why is this a recent thing, you may ask?  After all, I was at PowerShell Summit and heard the good word about it from Dave Wyatt himself way back in 2015, I’ve had years to start doing this.

Honestly, I didn’t get it…

To tell the truth, I didn’t understand the purpose of Pester. I always thought ‘Why do I need to test my code? I know it works if it accomplishes the job it’s supposed to do’.

For instance, I understood that Pester was a part of test-driven development, a paradigm in which you start by writing tests before you write any code.  You’d write a ‘It should make a box’ test and wire it up before you actually wrote the New-Box function.  But I was only looking at the outside of my code, or where it integrates into the environment.  In truth, all of the tests I wrote earlier on were actually integration tests.

See, Pester is a Unit Driven Test Framework.  It’s meant to test the internal logic of your code, so that you can develop with certainty that new features to your function don’t break your cmdlet.

CodeCoverage made Pester finally click

It wasn’t until I learned about the powerful -CodeCoverage parameter of Pester that it actually clipped.  For instance, here’s a small piece of pseudo code, which would more or less add a user to a group in AD.

Function Add-ProtectedGroupMember { Param( \[ValidateSet('PowerUsers','SpecialAdmins')\]$GroupName, $UserName)

if ($GroupName -eq 'SpecialAdmins'){ $GroupOU = 'CN=DomainAdmins,OU=Groups,DC=FoxDeploy,DC=COM' }else{ $GroupOU = 'CN=PowerUsers,OU=Groups,DC=FoxDeploy,DC=COM' }

try {Add-ADGroupMember -Path $GroupOU -Member $UserName -ErrorAction Stop} catch {throw "Check UserName; Input \[$UserName\]" }


And to go along with this, I made up a pseudo function called Add-ADGroupMember, defined as the following.

Function Add-ADGroupMember { param($GroupOU, $UserName) \[pscustomobject\]@{Members=@('EAAdmin','Calico','PB&J', $UserName);Name=$GroupOU} }

When I run Pester in -CodeCoverage mode and pass in the path to my Add-ProtectedGroupMember cmdlet,  Pester will highlight every branch of logic which probably needs to be tested.  Here’s what it looks like if I run the Pester again in that mode, without having created any tests.

PS>Invoke-Pester -CodeCoverage .\\Add-ProtectedGroupMember.ps1 Code coverage report: Covered 0.00% of 5 analyzed commands in 1 file.

Missed commands:

File Function Line Command ---- -------- ---- ------- Add-ProtectedGroup Add-ProtectedGrou 6 if ($GroupName -eq 'SpecialAdmins'){... Add-ProtectedGroup Add-ProtectedGrou 7 $GroupOU = 'CN=DomainAdmins,OU=Groups,DC=FoxDeploy,... Add-ProtectedGroup Add-ProtectedGrou 9 $GroupOU = 'CN=PowerUsers,OU=Groups,DC=FoxDeploy,DC... Add-ProtectedGroup Add-ProtectedGrou 12 Add-ADGroupMember -Path $GroupOU -Member $UserName ... Add-ProtectedGroup Add-ProtectedGrou 13 throw "Check UserName; Input \[$UserName\]"

As we can see, Pester is testing for the Internal Logic of our Function.  I can look at this report and realize that I need to write a test to make sure that the logic on line 6 works.  And more than highlighting which logic needs to be tested, it’s also basically a challenge.  Can you cover every case in your code?

Pester was stirring something within me, this gamified desired for completion and min-maxing everything.  (If it had Achievement Messages too, I would write Pester tests for everything!)

So, challenge accepted, let’s think through how to write a test to cover the first issue, line 6.  If a user runs my cmdlet and chooses to place the object in the SpecialAdmins OU, the output will always be ‘‘CN=DomainAdmins,OU=Groups,DC=FoxDeploy,DC=COM’’.  I can test for that with the following Pester test, saved in a file called Add-ProtectedGroupMember.tests.ps1

Describe "Add-ProtectedGroupMember" { It "The if branch for 'SpecialAdmin' use case should work" { $A = Add-ProtectedGroupMember -GroupName SpecialAdmins -UserName FoxAdmin $A.Name | Should -Be 'CN=DomainAdmins,OU=Groups,DC=FoxDeploy,DC=COM' } }

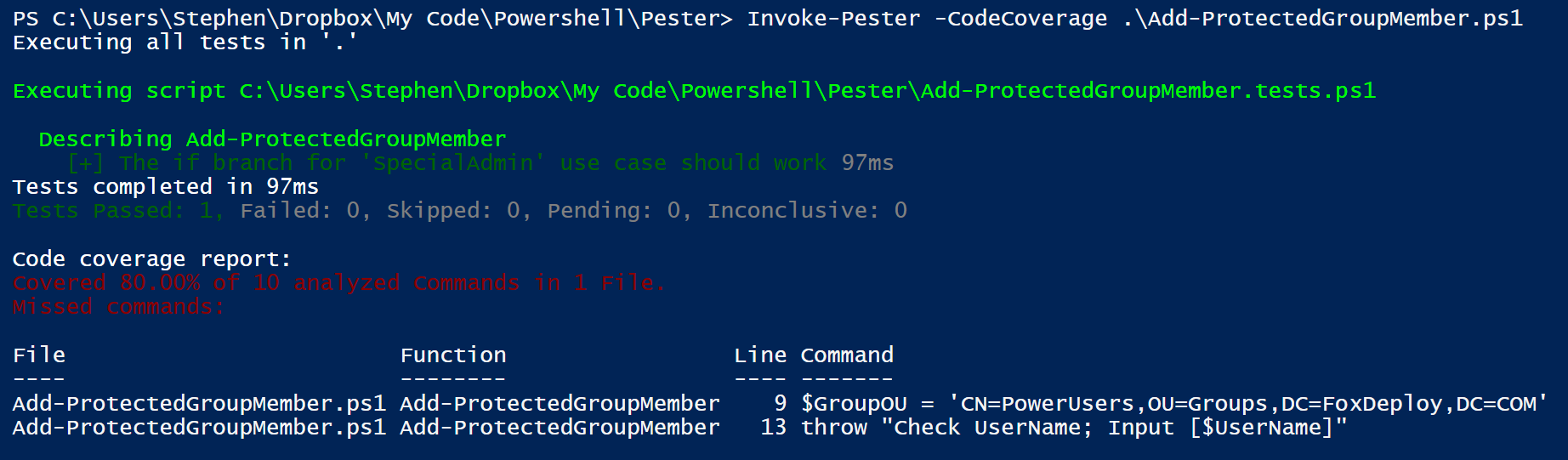

I run the Pester test again now and…

Wow, with one test, I have now covered 80% of the guts of this cmdlet, that was sweet. That’s because for this one test to execute successfully, all of these lines in my cmdlet are involved.

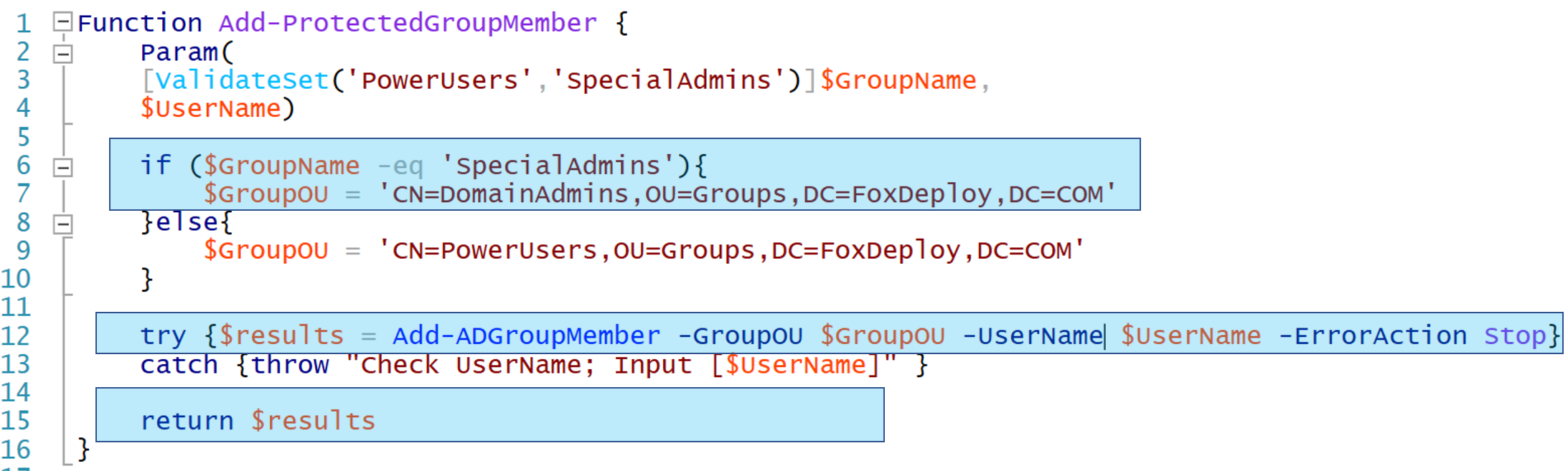

All of the lines in Blue were covered under just one test!

Completing The Tests

The next line that needs to be covered is called when the user runs with -GroupName PowerUsers, so we can cover that with this test.

It "The else branch for 'PowerUsers' use case should work" {

$A = Add-ProtectedGroupMember -GroupName PowerUsers -UserName FoxAdmin $a.Name | Should -Be 'CN=PowerUsers,OU=Groups,DC=FoxDeploy,DC=COM' }

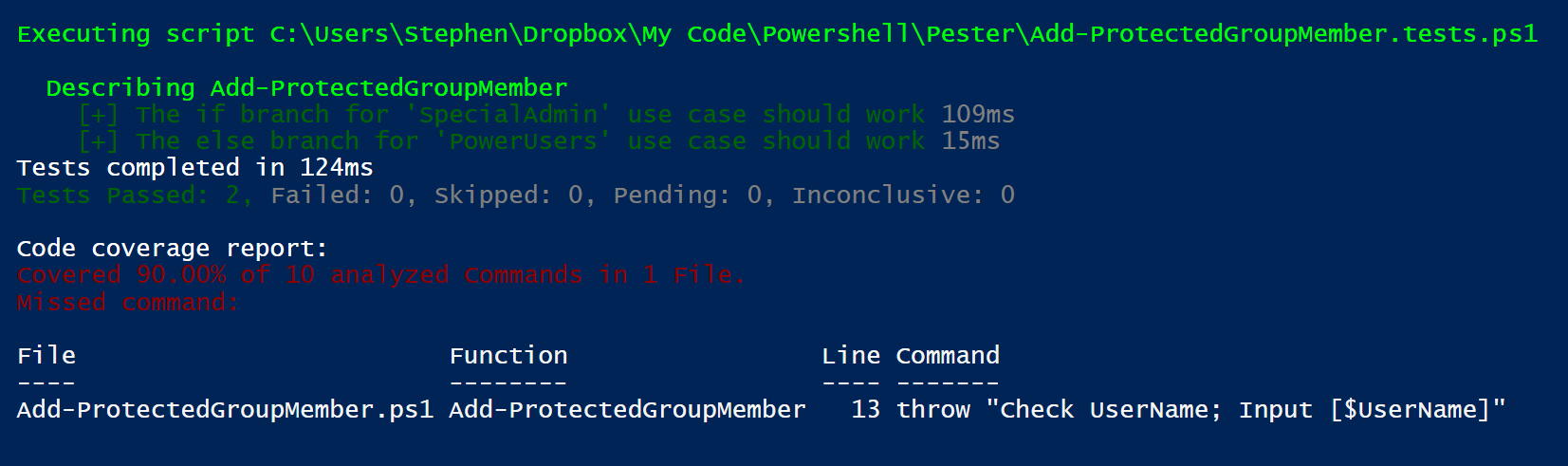

After this test, we’re practically done

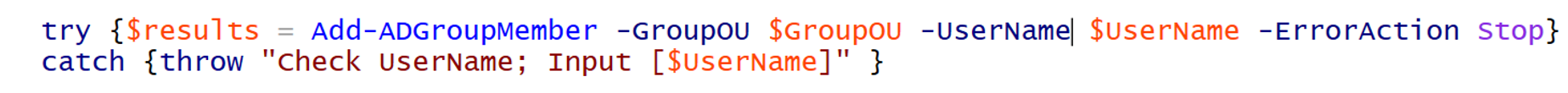

All that’s left now is to write a test for this chunk of code.

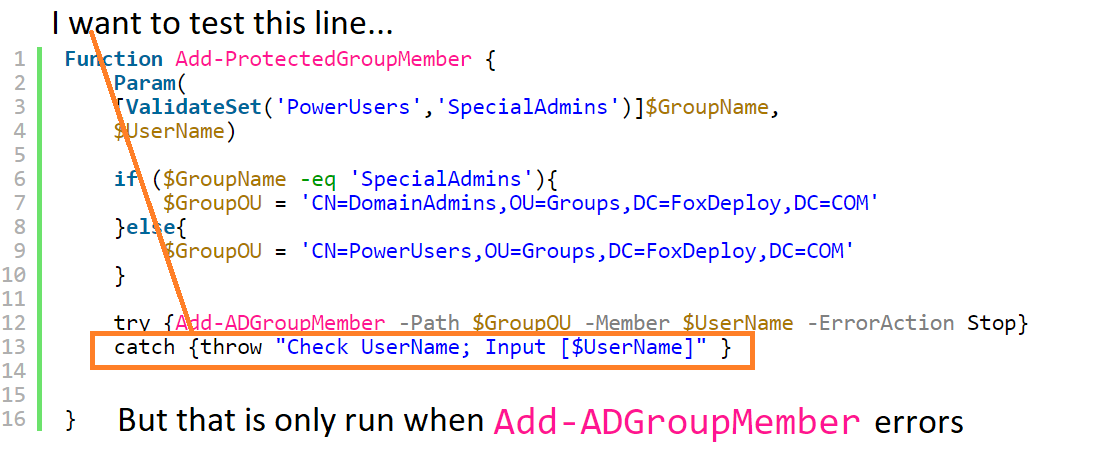

But I can only test that my error handling works if I can find some way to force the cmdlet in the try block to error somehow.  How the heck do I make my cmdlets poop the bed to test that this cmdlet has good error handling?

How to test your error handling

This is where the Pester keywords of Mock and Context come into play.  Pester allows you to ‘Mock’ a command, which basically replaces that command for one of your own design to ‘Mock’ up what a cmdlet would do.  For instance, when I’m running a test that uses Active Directory commands, I don’t want the tests to actually touch AD.  I would mock Get-ADUser and then have this fake function just output the results from one or two users.

Run the function, Select the first two results, then paste them into the body of the Function as a PowerShell Object.  Easey-peasey.

🦊Take-away 🦊 Mock clips the wings of any cmdlet, preventing them from actually running

If I want to test error handling, I write a new test showing when I expect my function to error (when it should throw).  To make it throw, especially when I am calling external cmdlets, I just mock that cmdlet, and replace that cmdlets guts with something that will throw an error.   To paraphrase:

So, in order to write a test to see if my code respects error handling, I need to overwrite the default behavior of Add-AdGroupMember to a state which will reliably fail.  It’s really simple to do!

```powershell#We need to be able to test that try/catch will work as expected Mock Add-ADGroupMember { throw }

It “Should throw if we’re unable to change group membership” {

{Add-ProtectedGroupMember -GroupName PowerUsers -UserName FoxAdmin } Should -Throw


I run the tests again and now...


Oh yeah, 100%!   In my development work, I work towards 100% code coverage to ensure that the guts of my logic is well covered by tests.  **This is worth the time to do (so build it into your schedules and planning timelines)** **because having the tests ensures that I don't break something when I come back to make changes three months from now**.

Let's move on to some of the scenarios which really stumped me for a while, as I'm still basically a newbie at Pester.

#### Verify Credentials or params are passed as expected

I wrote a cmdlet which called `Get-CIMInstance`,it was something like this.

Function Get-DiskInfo { param ($Credential)

Get-CimInstance Win32\_DiskDrive | select Caption,@{Name=‘SerialNumber‘;Expression={$\_.SerialNumber.Trim()}},\` @{Name=‘Size‘;Expression={$\_.Size /1gb -as \[int\]}}


We decided to add support for an optional -Credential param, for cases in which we would need to use a different account.  The difficulty appeared when we wanted to ensure that if the user provided a Parameter, it was actually handed off down the line.

To solve this problem, first we had to rewrite the cmdlet a little, to prevent having multiple instances of Get-CimInstance in the same cmdlet.  Better to add some extra logic and build up a hashtable containing the parameters to provide than to have multiple instances of the same command in your function.

Function Get-DiskInfo { param ($Credential)

if ($Credential){ $ParamHash = @{Credential=$Credential;ClassName='Win32\_DiskDrive'} } else{ $ParamHash = @{ClassName='Win32\_DiskDrive'} } Get-CimInstance @ParamHash | select Caption,@{Name=SerialNumber;Expression={$\_.SerialNumber.Trim()}},\` @{Name=Size;Expression={$\_.Size /1gb -as \[int\]}}


Next, to test if the $Credential param was passed in, we mocked Get-CimInstance and configured the code to save the input param’s outside of the function scope for testing.

Mock Get-CimInstance { param($ClassName) $script:credential = $credential $global:ClassName = $ClassName

} -Verifiable

Finally, in the test itself, we run the mocked cmdlet and then validated that after execution, the value of $Credential was not null.

It 'When -Credential is provided, Credential should be passed to Get-CimInstance' { $somePW = ConvertTo-SecureString 'PlainPassword' -AsPlainText -Force $cred = New-object System.Management.Automation.PSCredential('SomeUser', $somePW) Get-DiskInfo -Credential $cred $Credential | should -Not -be $null }

Once we came up with this structure to validate parameters were passed in to child functions, it really opened up a world of testing, and allowed us to validate that each of our parameters was tested and did what it was supposed to do.

Test Remote Types which won’t exist in the test environment

Recently I was working on a PowerShell module which would reach into ConfigMgr over WMI and pull back an instance of the SMS_Collection Class, and then we would call two methods on it.

$CollectionQuery = Get-WMIObject @WMIArgs -class SMS\_Collection -Filter "CollectionID = '$CollectionID' and CollectionType='2'"

This gives a SMS_Collection object, which we can use to call the .AddMemberShipRules() method and add devices to this collection.

I didn’t want my Pester tests to be dependent on being able to reach a CM Server to instantiate the object type (nor did I want my automated testing pipeline to have access to ConfigMgr) so…I just mocked everything that I needed.  It turns out that you can easily fake the methods your code needs to call using the Add-Member -MemberType ScriptMethod cmdlet.

Mock Get-WmiObject { param($ClassName) $script:credential = $credential $global:ClassName = $ClassName

$mock = \[pscustomobject\]@{CollectionID='FOX0001' CollectionRules='' CollectionType =2 Name = 'SomeCollection' PSComputerName = 'SomePC123'}

Add-Member -InputObject $mock -MemberType ScriptMethod `AddMemberShipRules`{ Write-Verbose 'Mocked' } -Verifiable

Now I could validate that this line of code is run and that the rest of my code later on calls this method with the following code.

It 'Should Receive an Instance of the SMS\_Collection object'{ Add-CMDeviceToCollection -CollectionID SMS0001 Assert-MockCalled -CommandName Get-WMIObject -Time 1 -Exactly -Scope It -ParameterFilter {$Class -eq 'SMS\_CollectionRuleDirect'}


Move method calls into their own functions

[Looking back to the code](https://github.com/keithga/CMPSLib/blob/master/PSCMLib/Collections/Add-CMDeviceToCollection.ps1#L84) for `Add-CMDeviceToCollection`, note line 84.

$MemberCount = Get-WmiObject @WMIArgs -Class SMS\_Collection -ErrorAction Stop -Filter $Filter $MemberCount.Get()

You can try until you are blue in the face, but Pester does not have the capability to mock .Net objects, or handle testing for methods being called. But it DOES excel with functions, so let’s just put the Method call from above into its own function, then we can check to see if the method was called by adding Assert-MockCalled.

Function Call-GetMethod { param($InputObject) $InputObject.Get() } Function Add-CMDeviceToCollection {

$MemberCount = Get-WmiObject @WMIArgs -Class SMS\_Collection -ErrorAction Stop -Filter $Filter $MemberCount = Call-GetMethod -InputObject $MemberCount Write-Verbose "$Filter direct membership rule count: $($MemberCount.CollectionRules.Count)"

And the test to validate that this line of code works as expected.

It 'Should call the .Get() method for the collection count'{ Add-CMDeviceToCollection -CollectionID SMS0001 Assert-MockCalled -CommandName Call-GetMethod -Time 1 -Exactly -Scope It


And that’s it!

And that’s all for now folks!  Have you encountered any of these situations before?  Or run into your own tricky case that you’ve solved?  Leave a comment below or post it on reddit.com/r/FoxDeploy to share!
